Plain Flat Kinematic Component

For many years past, the trend in kinematic coupling designs has shunned the classical conical cup, vee block and flat plane as described by both Maxwell and Lord Kelvin in separate publications in the late eighteen-hundreds. This reluctance was based on the great difficulty of generating very high quality conical and vee block surfaces.

Standardized kinematic components are now available that solve these age old quality limitations. Availability of these components has rekindled interest in the classical designs with the many advantages that are offered by the diverse components. An outstanding example of these advantages is the ability of an axis to pivot with unheard of accuracy along the line axis between the Conical Cup and the Vee Block.

Among the kinematic purists out there, this will end up as a button pushing opportunity. If the Vee Block is pointed at the bisector of the kinematic axis of the coupling, the line axis of the pivot could undulate because the two tangent contacts are not on the pivot axis. If on the other hand, the Vee Block is pointed parallel to the axis, we want to depict that we are no longer in strict compliance with kinematic principles.

If there is one thing that we have learned through the years, is that kinematics in general are very forgiving. A line of standardized flat components are available to go along with the conical cups and the more sophisticated components like the Rose Bud and Prismatic Components. The design of the first of the standard flat devices is for everyday applications. It is a disk made of micro "rained" stainless steel that is hardened to 58 HRC minimum. These disks are ground parallel and the working surface is lapped flat with a 2 microinch (.05 micrometer) Ra surface quality. There is a blind threaded hole in the back surface to hold them on the Kinematic Platform.

Standard Flat Components

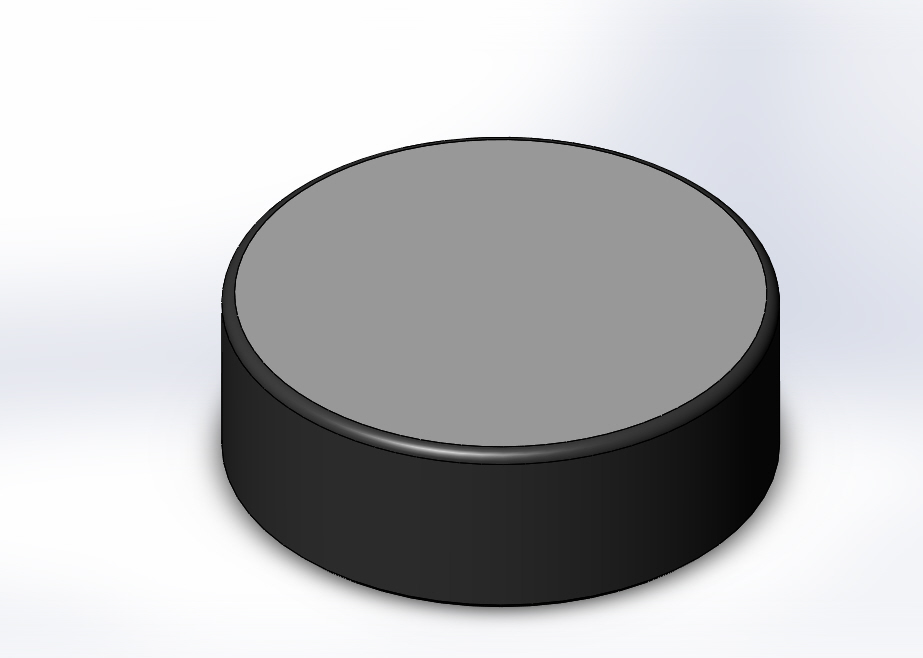

F-875-SM
Flat - Surface Mounted
Downloads
PDF Solidworks IGES
Download as PDF Download as Solidworks Download as IGES
Kinematic Flat, F-875-SM F-875-SM

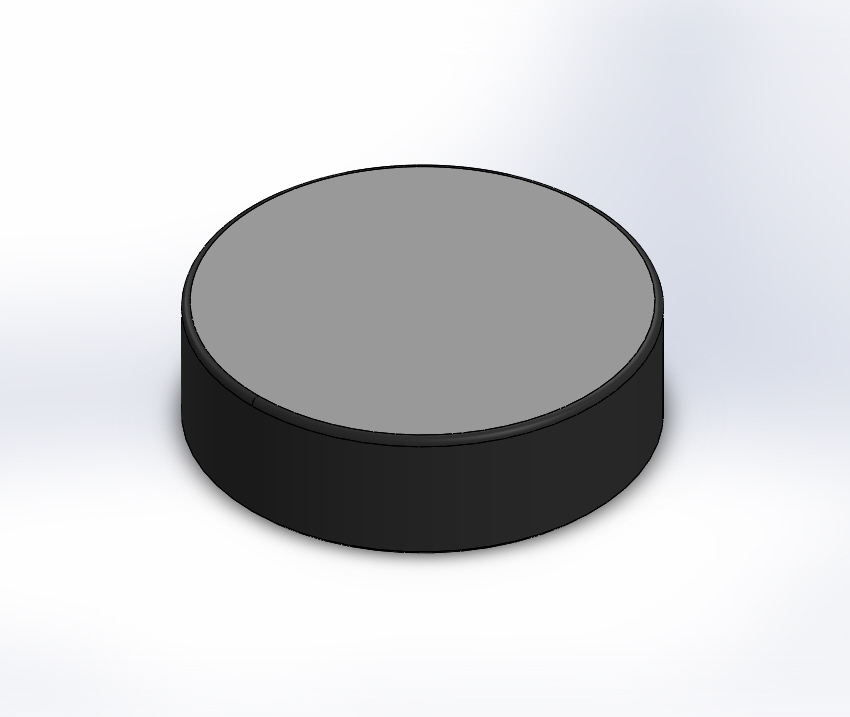

F-112-SM
Flat - Surface Mounted
Downloads
PDF Solidworks IGES
Download as PDF Download as Solidworks Download as IGES
F-112-SM, 1.125 Inch, Surface Mount

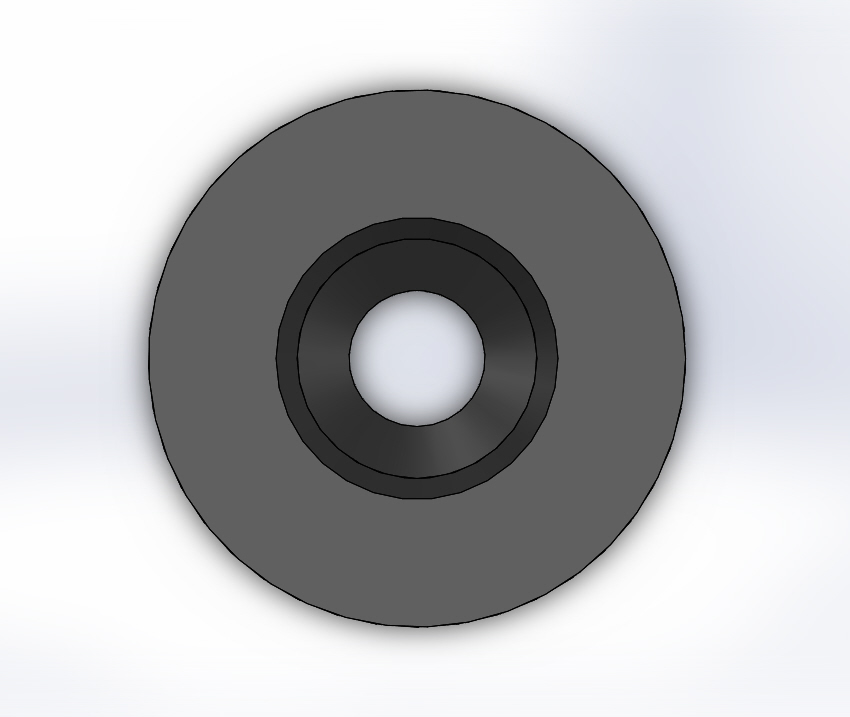

FC-75-SM
Flat Cylinder - Surface Mounted
Downloads
PDF Solidworks IGES
Download as PDF Download as Solidworks Download as IGES
FC-75-SM FC-75-SM, 3/4 inch flat, surface mounted

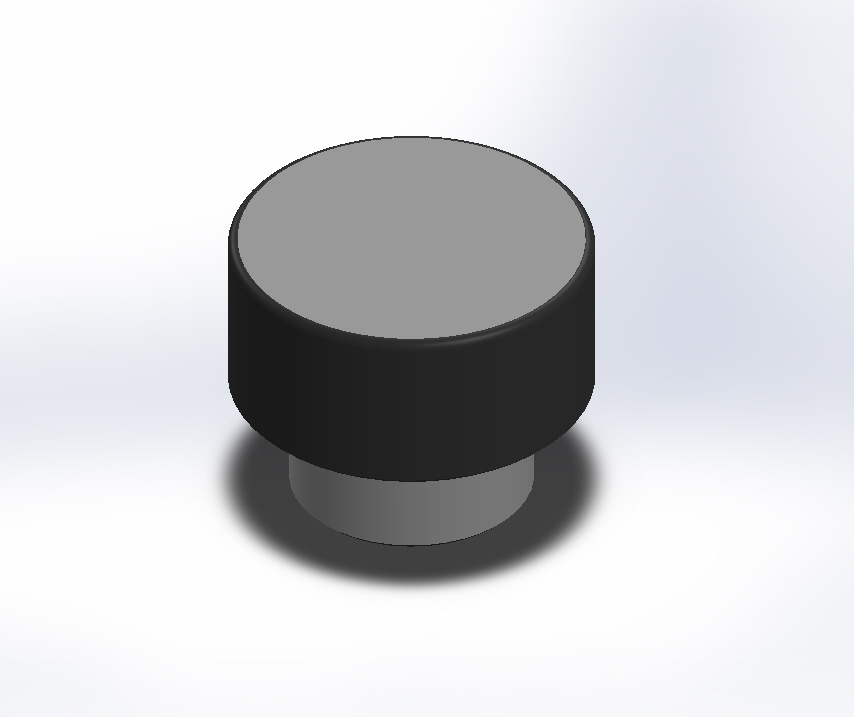

F-75-CPM
Flat - Cylindrical Post Mounted
Downloads
PDF Solidworks IGES
Download as PDF Download as Solidworks Download as IGES
F-75-CPM, Flat, Cylindrical Flat, 3/4", Cylindrical Post Mounted

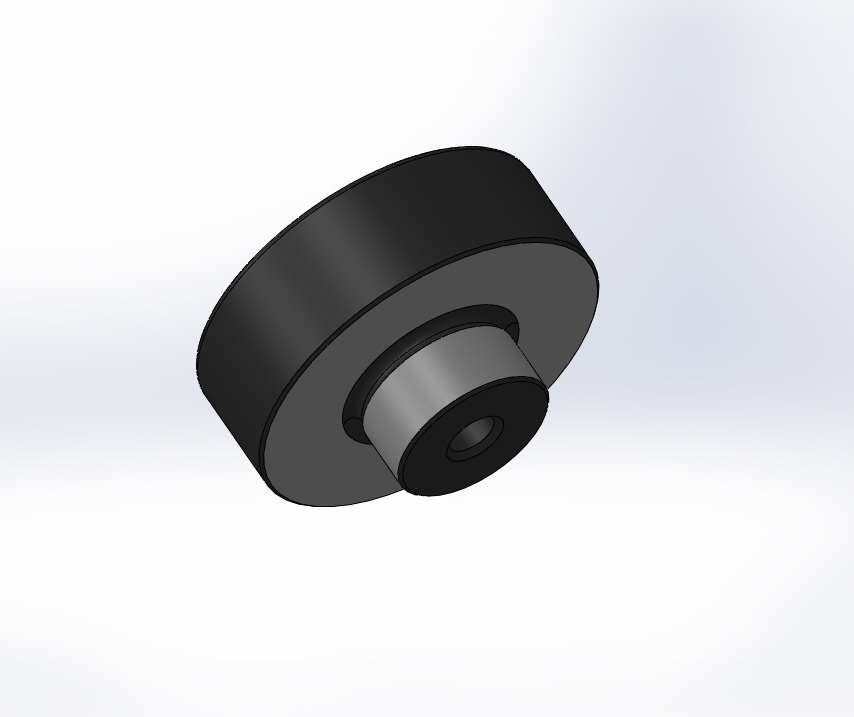

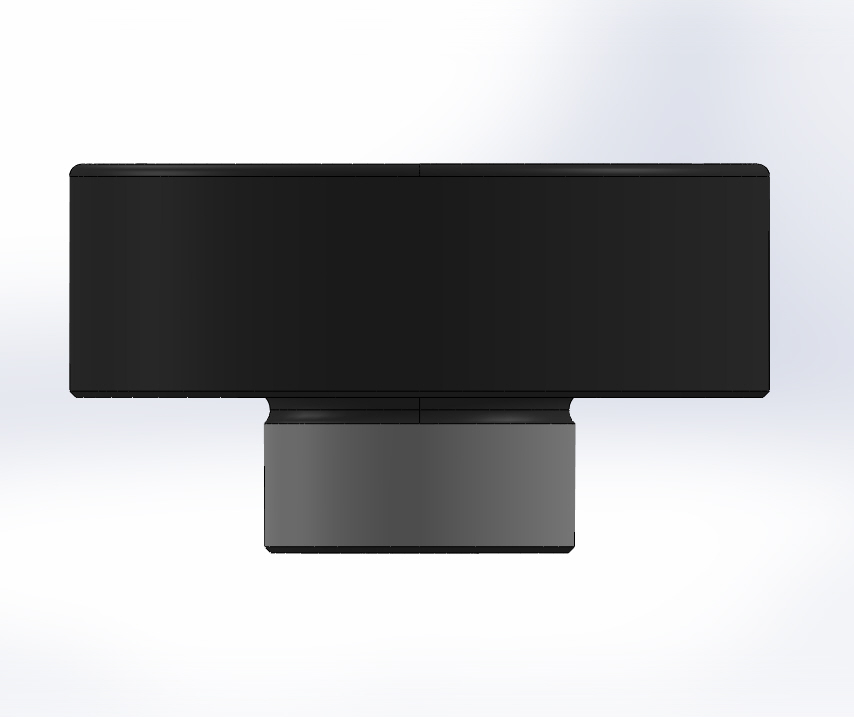

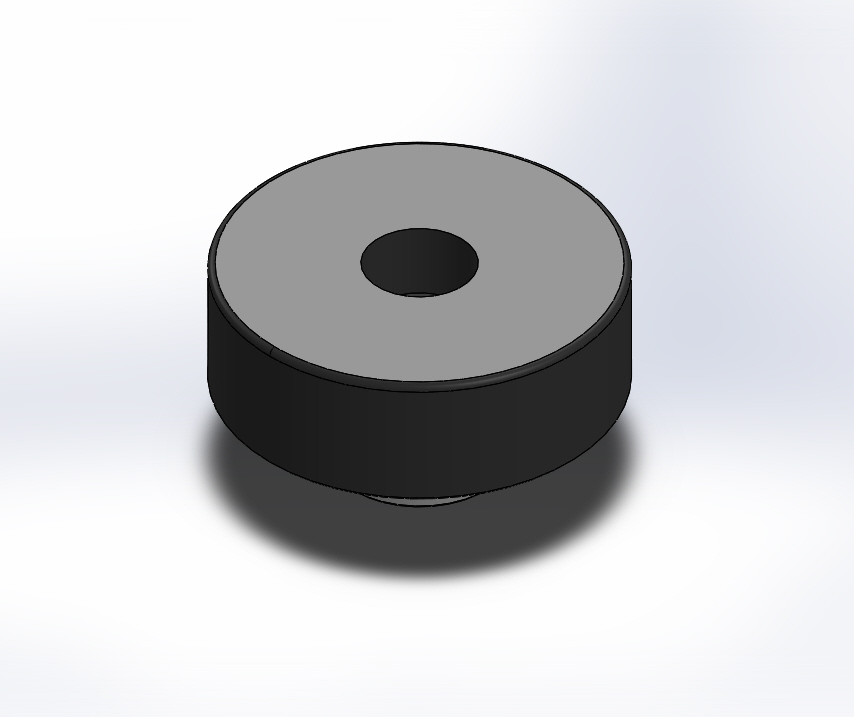

FC-112-CPM
Flat - Cylindrical Post Mounted
Downloads
PDF Solidworks IGES
Download as PDF Download as Solidworks Download as IGES
FC 112 CPM FC 112 CPM

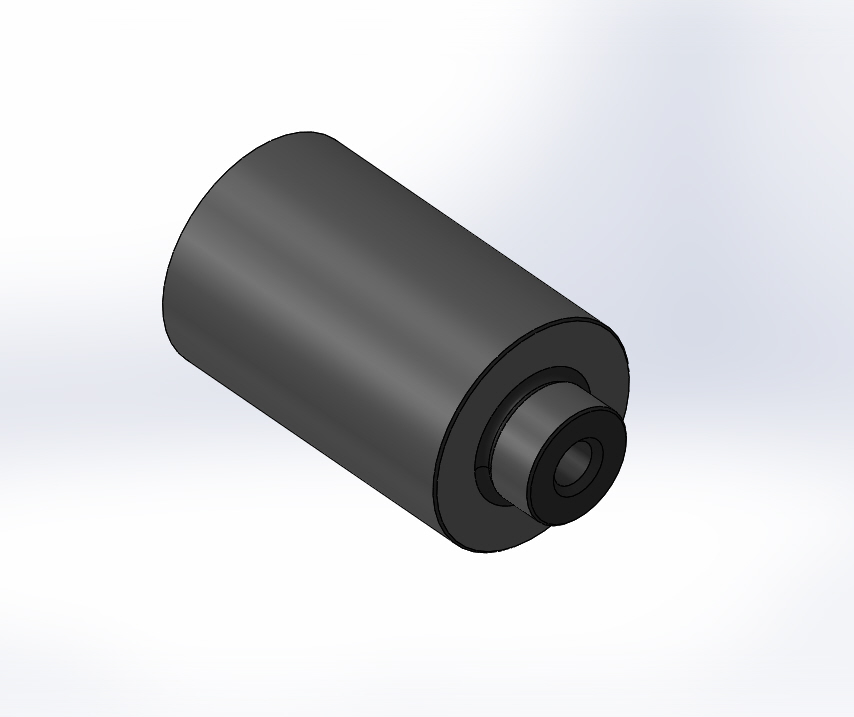

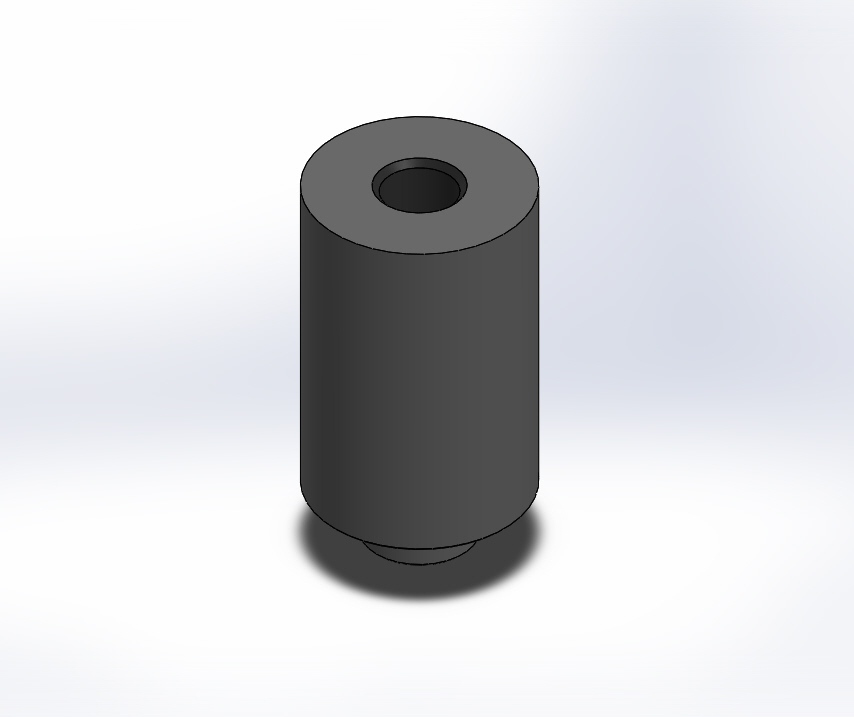

FC-100-CPM
Flat Cylinder - Cylindrical Post Mounted
Downloads
PDF Solidworks IGES
Download as PDF Download as Solidworks Download as IGES
Kinematic Flat, FC100 FC-100-CPM, Flat, 1" diameter, Post Mounted
FC-112-EP-CPM
Flat with Extension Post - Cylindrical Post Mounted
Downloads
PDF Solidworks IGES
Download as PDF Download as Solidworks Download as IGES
Flat, FC-112 FC-112-EP-CPM

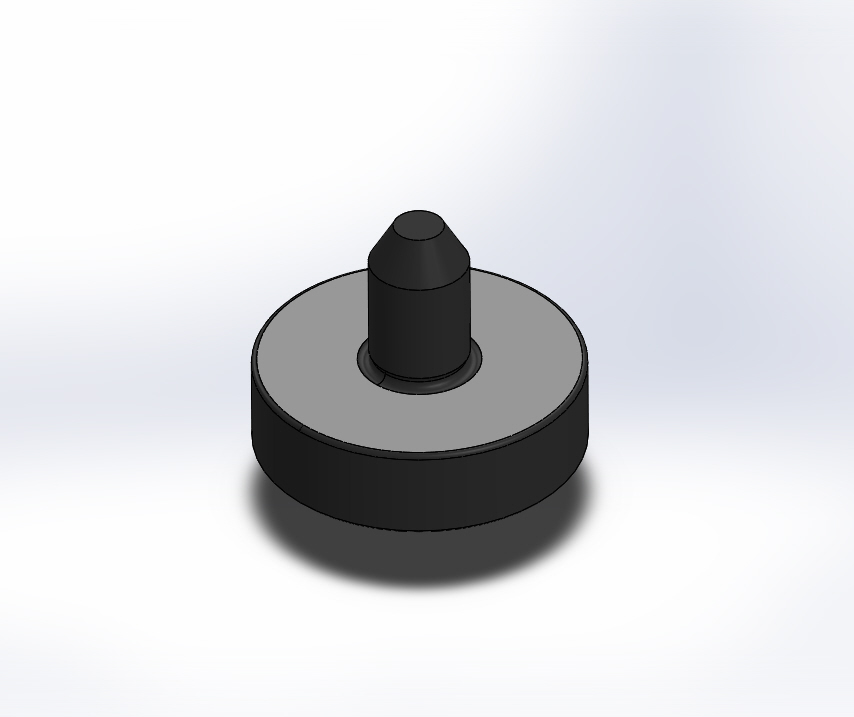

F-125-EP-CPM
Flat with Extended Post - Cylindrical Post Mounted
Downloads
PDF Solidworks IGES
Download as PDF Download as Solidworks Download as IGES
F-125-EP-CPM

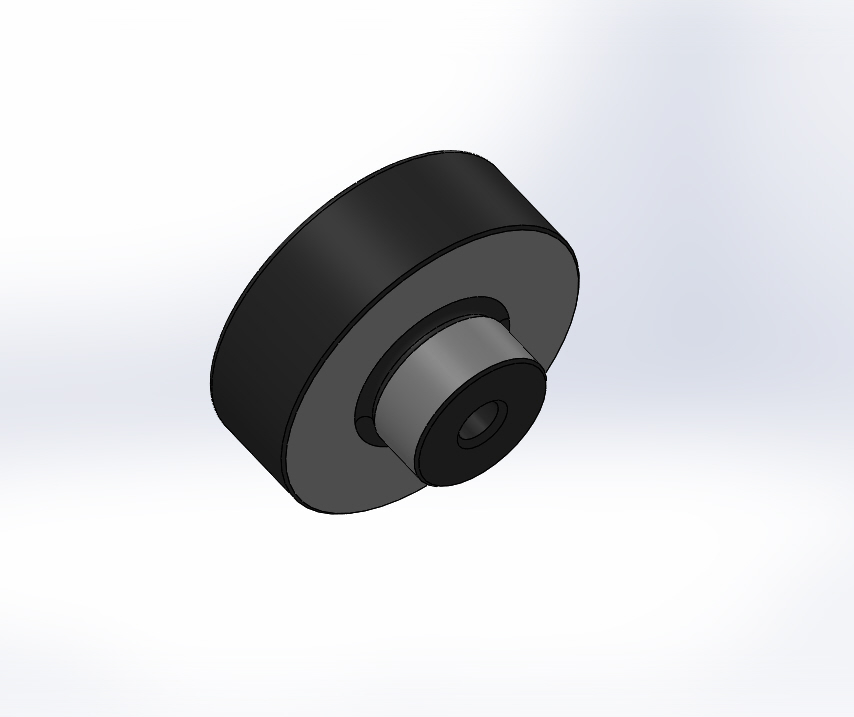

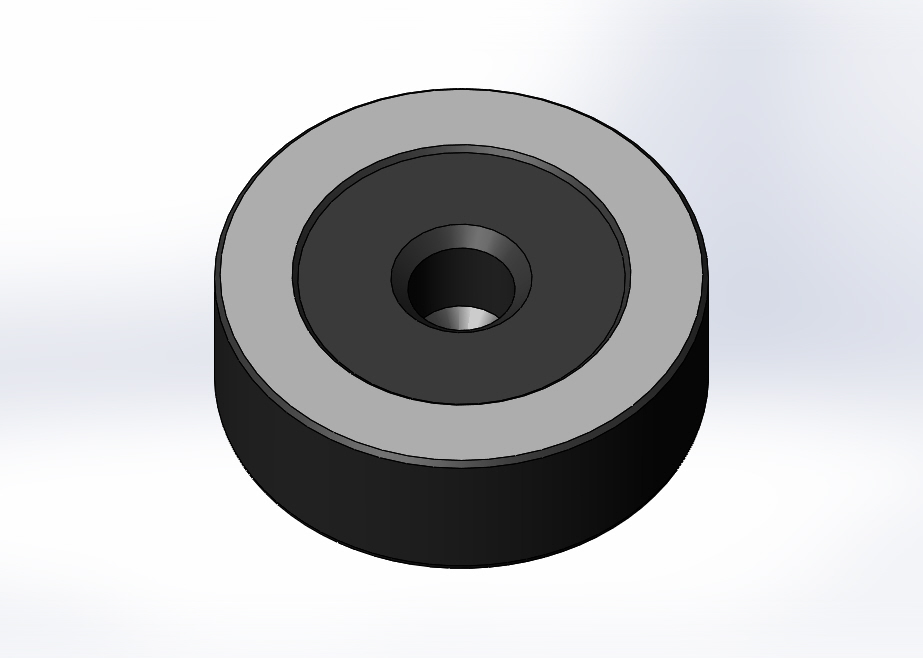

F-112-CB-CPM
Flat - Cylindrical Post Mounted with Counterbore
Downloads
PDF Solidworks IGES
Download as PDF Download as Solidworks Download as IGES
Flat Kinematic Component, 1.125" inch Diameter F-112-CM-CPM

Standard Flat Components - Pricing

Part # Description Price Purchase
F-112-CB-CPM FLAT CYLINDER, POST MOUNTED WITH COUNTERBORE 1.125" ( 1 1/8", 28.575 MM ) $34.00 Shopping Cart
F-112-SM FLAT - SURFACE MOUNTED 1.125" ( 1 1/8", 1.125", 28.575 MM ) $24.00 Shopping Cart
F-125-EP-CPM FLAT WITH EXTENDED POST - CYLINDER, CYLINDRICAL POST MOUNTED 1.125" ( 1 1/8", 28.575 MM ) $33.00 Shopping Cart
F-75-CPM FLAT CYLINDER, POST MOUNTED 3/4" ( 0.75", 19.05 MM ) $21.00 Shopping Cart
F-75-SM FLAT CYLINDER - SURFACE MOUNTED 3/4" ( 0.75", 19.05 MM ) $20.00 Shopping Cart
F-875-SM FLAT - SURFACE MOUNTED 0.875" ( 7/8", 22.22 MM ) $18.00 Shopping Cart
FC-100-CPM FLAT CYLINDER, POST MOUNTED 1" ( 25.4 MM ) $33.00 Shopping Cart
FC-100-CPM FLAT WITH EXTENSION POST - CYLINDER, CYLINDRICAL POST MOUNTED 1.125" ( 1 1/8", 28.575 MM ) $33.00 Shopping Cart
FC-112-CPM FLAT CYLINDER, POST MOUNTED 1.125" ( 1 1/8", 28.575 MM ) $24.00 Shopping Cart
SW-1 SPANNER WRENCH $28.00 Shopping Cart

Special Order Only

We will custom manufacturer any special design required to fill specific customer needs for corrosion resistance and magnetic or electrical properties. The third option has the same design features as the standard flat devices except it has a precision ground cylindrical boss that provides excellent locate-ability. For premium applications, there is a steel disk that is threaded on the outside diameter. There is a smaller tungsten carbide disk glued in the center of the working face. This carbide disk is lapped flat with 1 microinch (.025 micrometer) Ra surface quality. Tungsten Carbide is the stiffest, hardest, commercially available material, with a Young's Modulus of Elasticity of 98,000,000 PSI and a hardness of 91 HRA.

This thread on the disk can be used as an adjustment or to lock the device in place. As an alternative, it can simply be permanently glued into an oversize counterbore. There are four holes drilled in the top face. This allows adjustment up and down by rotating it with a special Spanner Wrench, Part Number SW -1.
